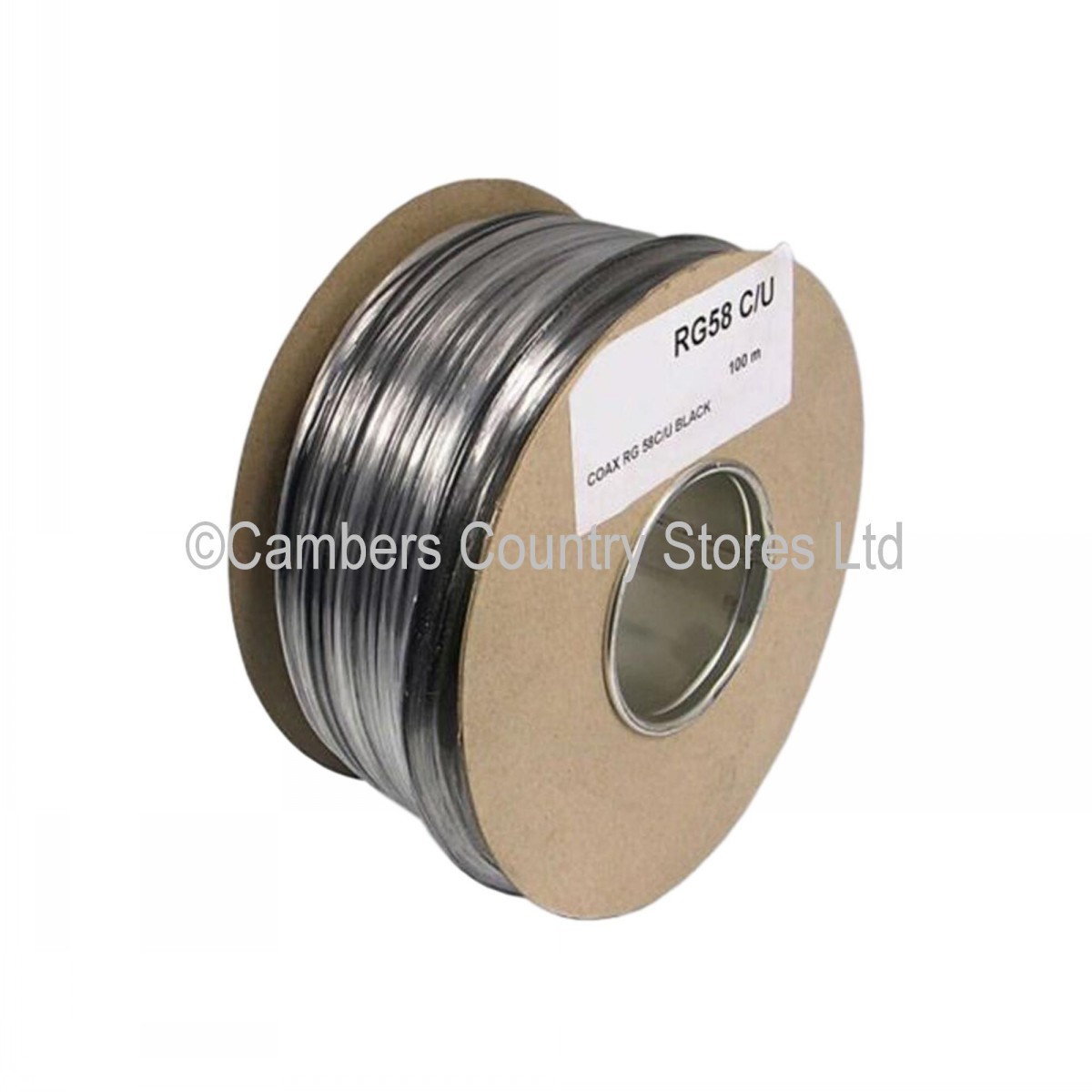

CB Radio Coaxial Cable RG58 CU 50Ohm

Description

CB Radio Coaxial Cable RG58 CU 50Ohm
High quality low loss 50 Ohm coaxial cable suitable for most radio applications.
Per metre or 100m reel.

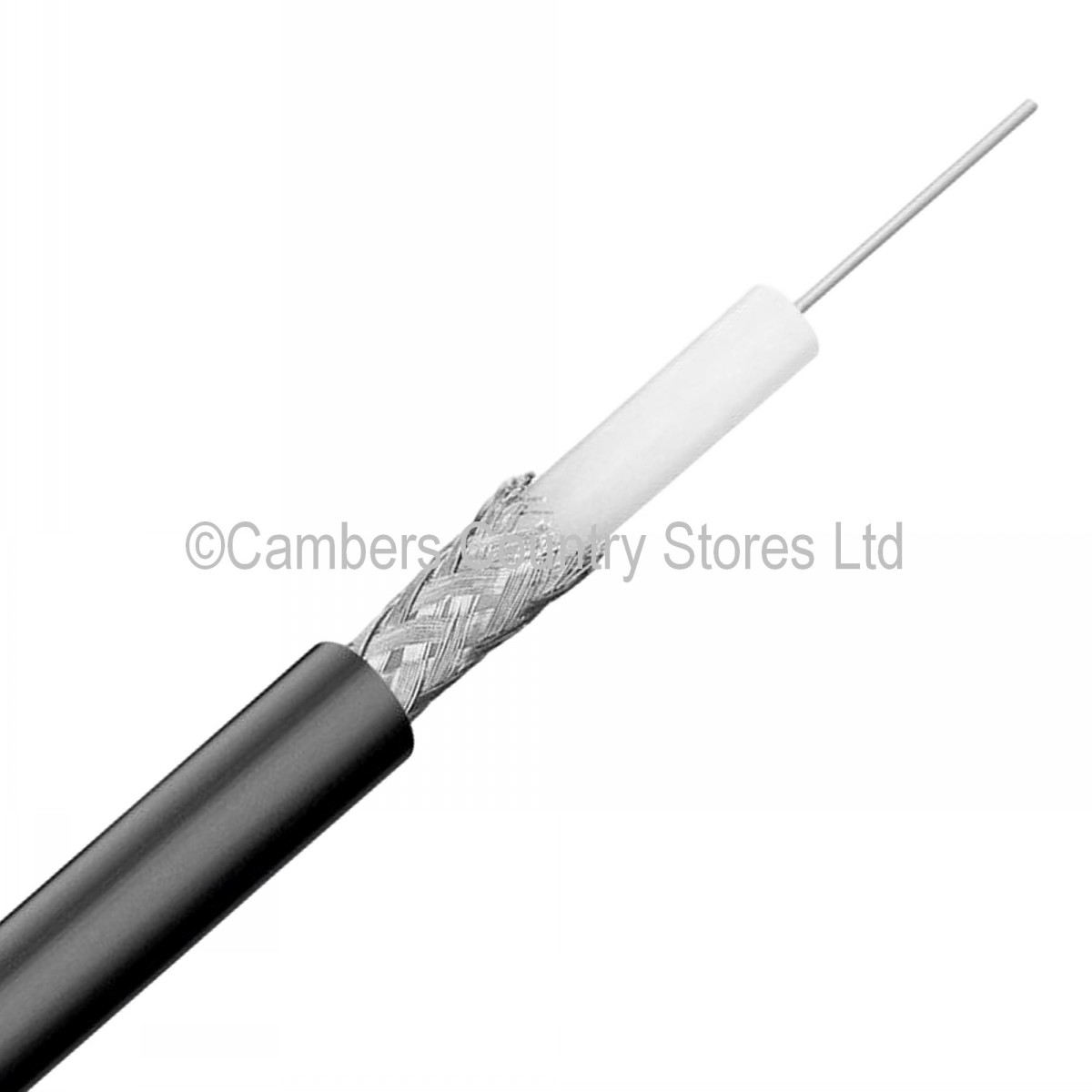

Stranded Tinned copper conductors, solid polyethylene insulation, tinned copper braided screen with PVC sheath.

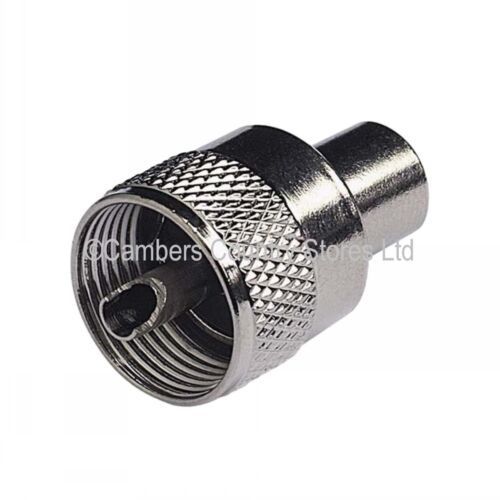

Note: Use 6mm PL259’s when attaching to radios and mounts.

Main Features:
Conductor CSA: 0.48mm²
Conductor diameter: 19/0.18mmØ
Conductor Material: Tinned copper
Braid: 112/0.12mmØ
Braid material: Tinned copper
Cable diameter: 4.95mm
Dielectric: 2.95mmØ Solid P.E.
Screen OD: 3.3mm
Impedance: 50 ohms
Capacitance PF/M: 100
Velocity Factor – 66%
Colour: Black
Attenuation per 10 Meters
10 MHz – 0.45dB
50MHz – 1.3dB
100MHz- 1.5dB
200MHz – 2.5dB
1 GHz – 5.6dB
CPR / ECA CLASS
