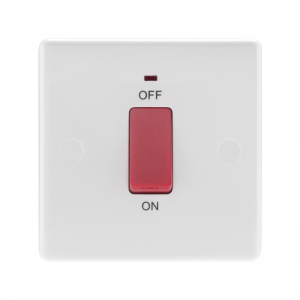

BG Rounded Edge Double Pole Cooker Switch With Indicator Single Plate
The subtle design will blend with any décor - suitable for domestic or commercial installations.
White moulded round edge, sleek and slim with softly rounded edges.
Covers to conceal fixing screws.

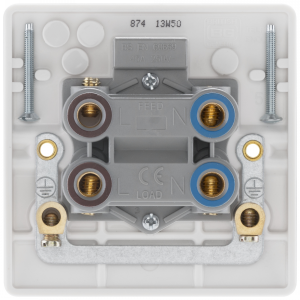

Angled colour coded terminals with captive screws.
2 earth terminals.
Supplied with spacer adaptor plate.
Easy to install, supplied with fixing screws and installation instructions.
Technical Specifications:
• Standard: BS4177
• Rating: 45 Amp 250V~
• Switch Type: Double Pole
• Contact Gap: 3.0mm minimum
• Terminal Capacity L & N: 4 x 4.0mm² 3 x 6.0mm² 1 x 16.0mm²
Mounting Box Depth (Min): 47mm
Fixing Centres: 60.3mm
Size: 86mm x 86mm x 29.3mm
