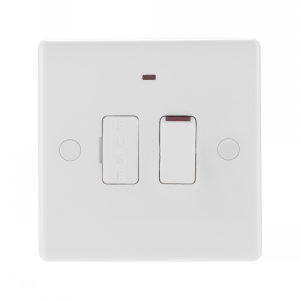

BG Rounded Edge Switch Fused With Indicator
The subtle design will blend with any décor - suitable for domestic or commercial installations.

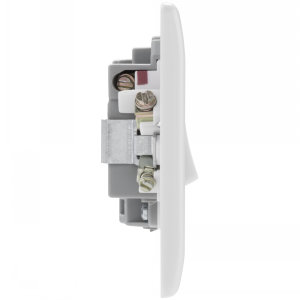

White moulded round edge, sleek and slim with softly rounded edges.
Colour coded terminals with backed out captive screws for easy installation.
Easy to install, supplied with fixing screws and installation instructions.
Covers to conceal fixing screws.
Technical Specifications:
Standard: BS 1363 Part 4
ASTA Approval: License Number 1015
Rating: 13 Amp 250V~
Switch Type: Double pole
Contact Gap: 3.0mm minimum
Terminal Capacity: 3 x 2.5mm² 2 x 4.0mm² 1 x 6.0mm²
Mounting Box Depth (Min): 35mm
Fixing Centres: 60.3
Size: 86mm x 86mm x 28.8mm
