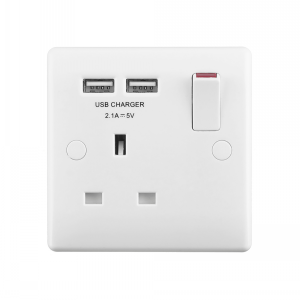

BG Rounded Edge Switched Socket 1 Gang With 2 x USB 13A
• The subtle design will blend with any décor - suitable for domestic or commercial installations.
• White moulded round edge, sleek and slim with softly rounded edges.
• Smart USB - Standby mode when device is fully charged.
• AutoDetect's the USB device and adjusts charging pattern to suit; protective overload function.
• USB charger standby mode when not in use.
• Angled colour coded terminals with captive screws.
Technical Specifications:
• Standard: BS1363-2:2016
• Rating: 13 Amp 240V~
• Contact Gap: 3.0mm minimum
• Switch type: Single Pole
• Terminal Capacity L & N: 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²
• Mounting Box Depth (Min): 25mm
• Fixing Centres: 60.3mm
• USB Output: 5V, 2.1A, shared across two USB ports
• Output Tolerance: <5%
• Standby Power: <75mW
• USB Overcurrent Protection: 2.43A
